Fits: A-Class; C Class; Fifth wheel; Travel Trailer; Camper
Replace this handle: Your current handles outside dimensions should be around 3.5" wide * 4.25" tall
Hole dimensions: The hole size should be approx. 3.75" * 2.75" * 1.5"
RVLOCK Specification: The overall product size is approx. 4.25" * 5.5"
Fit for the door: Thickness 30-50mm, right-handed door
1 * Handle
1 * Remote controller
2 * Keys and Installation Hardware (batteries not included)

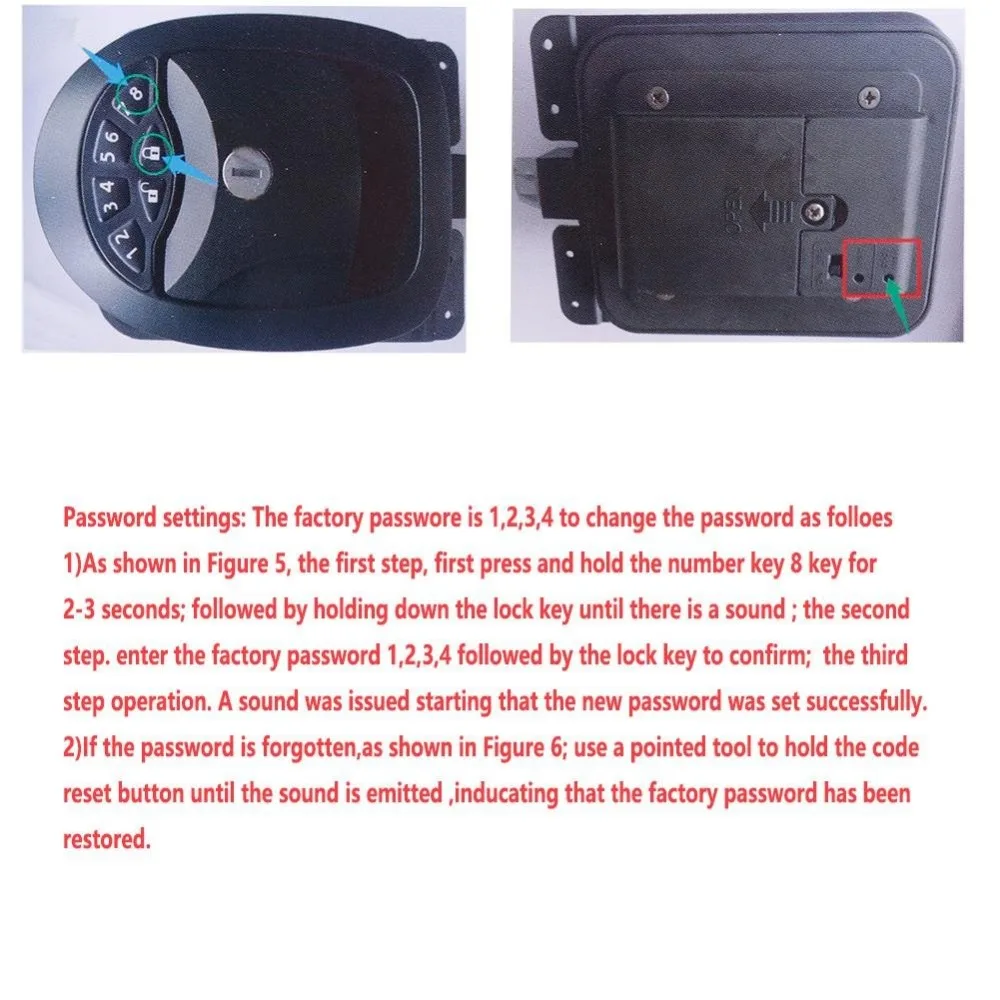

Step 1. Press the number key 8 continually and press the lock button in the meantime until you hear a beep.
Step 2. Input the factory password 1234, then press the lock button.
Step 3. Input the password you want, then press the lock button.
Step 4. Repeat step 3. Done
a, hold down the numeric keys 8, followed by holding down the lock key until a sound is sent
b, enter the factory password 1, 2, 3, 4 followed by pressing the lock key
c, enter your new password and then press the lock key
d, then repeat the third step
This new password set up successfully.
If the password is forgotten, please use the pointed tools to withstand the code reset button until the sound is sent, thus restoring to the factory password.
Key use: the right lock cylinder is to control the oblique mouth tongue; the left cylinder is to control the Founder's tongue.

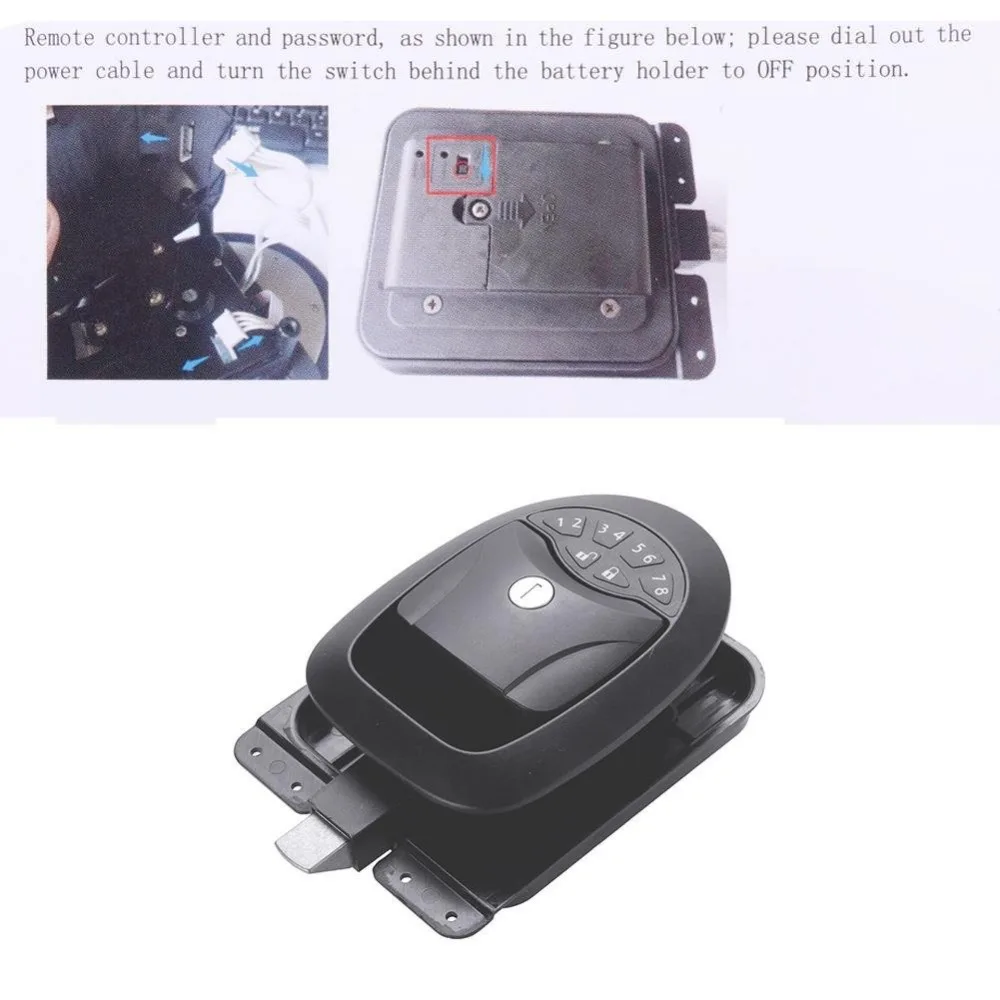

Without the remote control and password, please unplug the power cord and turn the switch on the battery to the OFF position.
Life of the battery is 3-4 months, it is recommended to replace the battery every 3 months.
The door with 30-40MM thickness is applicable.
